Power & Energy Logger PEL 105
The PEL 105 logger is particularly simple to use with an all-terrain IP67 casing capable of withstanding shocks, UV rays and extreme temperatures.

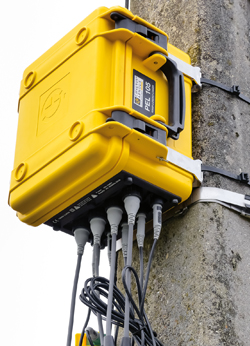

It is ideal for outdoor installation directly on an electricity pole. With its 1,000 V CAT IV safety rating, it can be used for measurements on all LV networks, including measurements of the neutral-earth voltage and the neutral current. This stand-alone instrument is equipped with a selfpowering system via its voltage inputs up to 1,000 V. The PEL 105 offers 5 voltage inputs and 4 current inputs. Compatible with a large number of current sensors to make it easier to use, it also recognizes the sensors automatically.
The PEL 105 can be used to measure, record and analyse the power values (W, var, VA) and energy values (kWh, kvarh, kVAh). At the same time, they record the PF and the DPF. Recording is continuous with a sampling interval of 200 ms.
